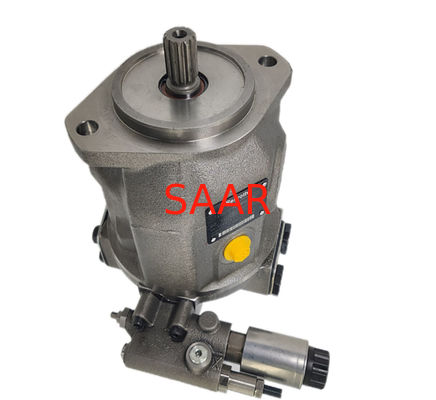

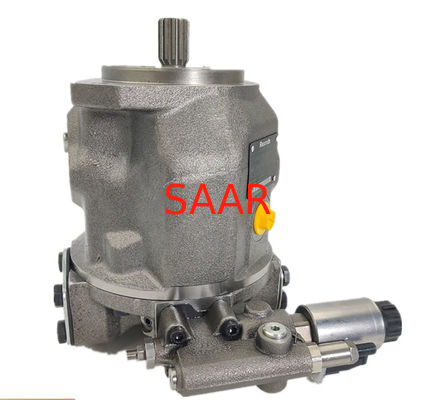

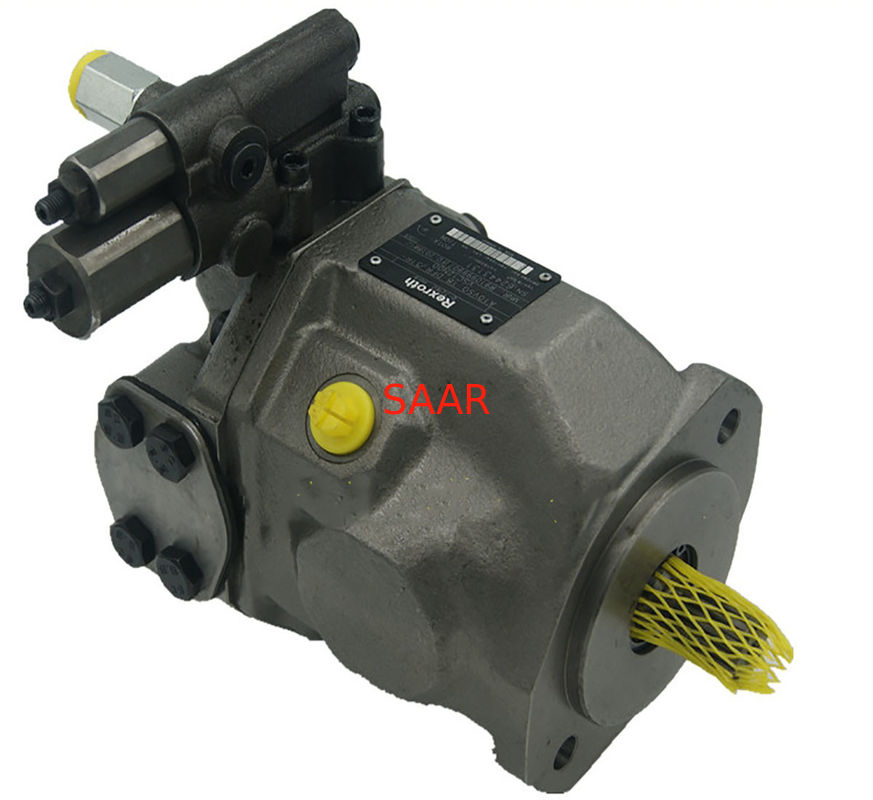

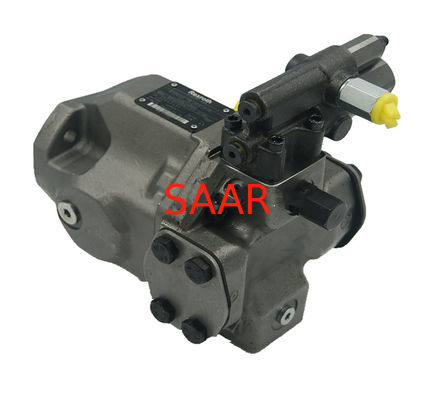

Name: R902593424 AA10VO18DR/31R-VSC12N00 AA10VO18 Series Axial Piston Variable Pump
Brand: Saar HK Electronic Limited
SKU: R902593424 AA10VO18DR/31R-VSC12N00
Price: 1,075.00 USD
Availability: InStock

Αρχική Σελίδα Προϊόντα Υδραυλική αντλία Rexroth

R902593424 AA10VO18DR/31R-VSC12N00 AA10VO18 Series Axial Piston Variable Pump

Λεπτομέρειες:

Τόπος καταγωγής:	Γερμανία
Μάρκα:	Rexroth
Αριθμό μοντέλου:	R902593424 AA10VO18DR/31R-VSC12N00

Πληρωμής & Αποστολής Όροι:

Ποσότητα παραγγελίας min:	1
Τιμή:	On request
Συσκευασία λεπτομέρειες:	χαρτοκιβώτιο, ξύλινο κουτί
Χρόνος παράδοσης:	7-10 ημέρες
Όροι πληρωμής:	T/T, Western Union
Δυνατότητα προσφοράς:	10PCS σε 7-10days

Επικοινωνία

Λεπτομερής Περιγραφή Προϊόντος

MNR:	R902593424	Μοντέλο:	AA10VO18DR/31R-VSC12N00

Rexroth Axial piston variable pump A10VO series 31

All-purpose medium pressure pump
Size 18 … 100
Nominal pressure 280 bar
Maximum pressure 350 bar
Open circuit

Features
Through drive for mounting of further pumps up to same nominal size
Low operating noise
Long service life
Controls with short response times
Excellent suction characteristics
2 drain ports
Swashplate design

Table of values

Size				18	28	45	71	88	100	45	71	100
Version				Standard						High speed
Displacement geometric, per revolution		V_g max	cm³	18	28	45	71	88	100	45	71	100
Nominal pressure		p_nom	bar	280	280	280	280	280	280	280	280	280
Maximum pressure		p_max	bar	350	350	350	350	350	350	350	350	350
Maximum speed ¹⁾	at V_g max	n_nom	rpm	3300	3000	2600	2200	2100	2000	3000	2550	2300
Flow	at V_g max and n_nom	q_V nom	l/min	59	84	117	156	185	200	135	178	230
Flow	at V_g maxand n = 1500 rpm	q_V 1500	l/min	27	42	68	107	132	150	68	107	150
Power	at q_{V nom} and p_nom	P	kW	30	39	55	73	86	93	63	83	107
Power	at q_{V 1500} and p_nom	P ₁₅₀₀	kW	12.6	20	32	50	62	70	32	50	70
Torque	at V_g max and p_nom	M	Nm	80	125	200	316	392	445	200	316	445
Weight (approx.)		m	kg	12.9	18	23.5	35.2	35.2	49.5	23.5	35.2	49.5
